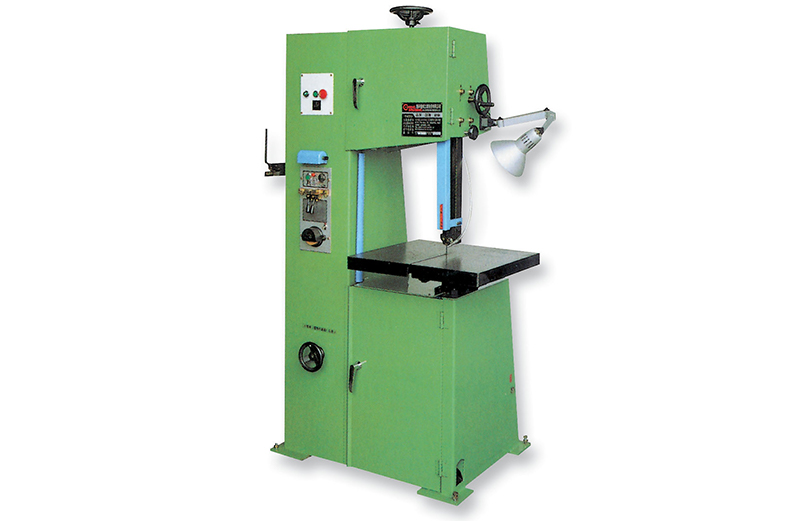

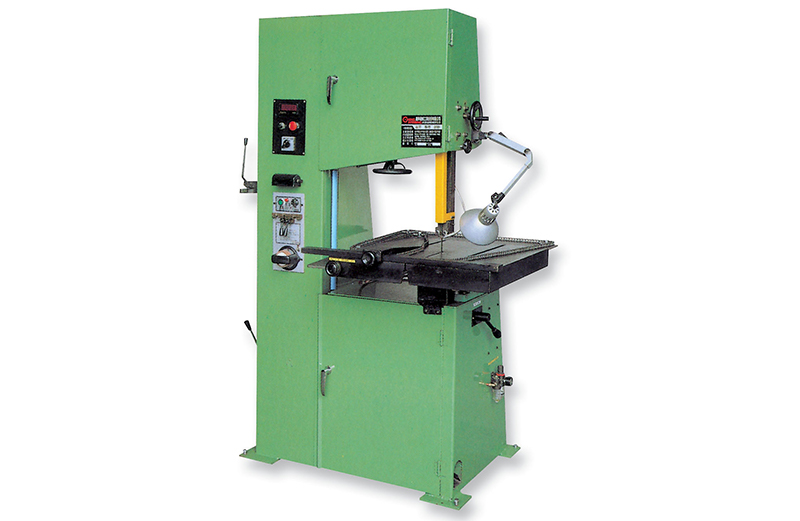

Vertical Band Saw C-310,C-400,C-500,C-600,C-700

Vertical Band Saw C-310,C-400,C-500,C-600,C-700 Features

1.Precise structure design and simple operation.

2.The cutting is fast and stable, the cutting surface is flat, and the precision is high.

3.The most economical saw belt is used, the processing surface is wide, the cutting force is strong, and there are many models.

4.It is suitable for all kinds of processing factories and mold factories.

_______________________________________________________________________________________________

Standard accessories

1.Basic machine

2.saw band

3.working lamp

4.Saw Band Cutter

5.Welding machine

6.grinder

_______________________________________________________________________________________________

special accessories

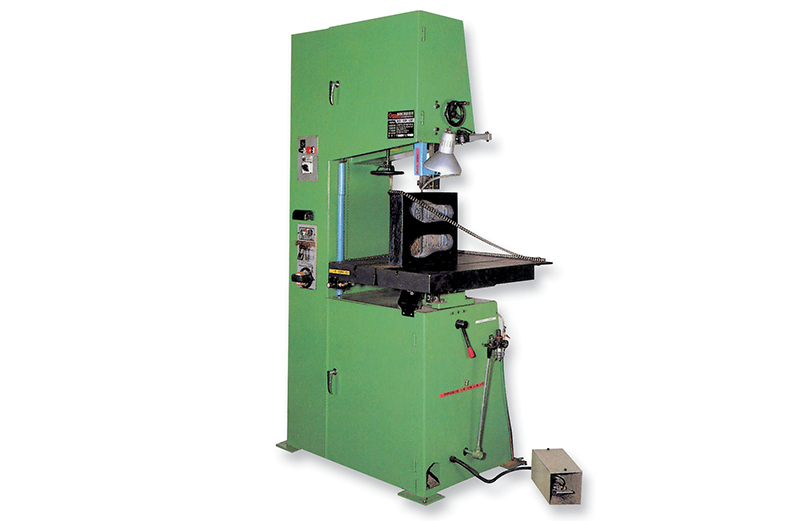

1.It is suitable for the hydraulic linear feeding device installed on the C-400 and above models. The feeding speed can be adjusted steplessly, and the pressure can be adjusted appropriately. The sawing is fast, smooth and high in precision.

  1. Inquiry
  2. Back
  3. Next

Detailed description

Vertical Band Saw C-310,C-400,C-500,C-600,C-700 Features

1.Precise structure design and simple operation.

2.The cutting is fast and stable, the cutting surface is flat, and the precision is high.

3.The most economical saw belt is used, the processing surface is wide, the cutting force is strong, and there are many models.

4.It is suitable for all kinds of processing factories and mold factories.

_______________________________________________________________________________________________

Standard accessories

1.Basic machine

2.saw band

3.working lamp

4.Saw Band Cutter

5.Welding machine

6.grinder

_______________________________________________________________________________________________

special accessories

1.It is suitable for the hydraulic linear feeding device installed on the C-400 and above models. The feeding speed can be adjusted steplessly, and the pressure can be adjusted appropriately. The sawing is fast, smooth and high in precision.

Specification data

model C-310 C-400 C-500 C-600 C-700 C-1000 C-15000
Cutting ability 220mm 350mm 330mm 350mm 300mm 300mm 300mm
deep throat 304mm 404mm 506mm 598mm 700mm 1020mm 1500mm
Maximum Saw Band Width 13mm 19mm 30mm 30mm 35mm 19mm 19mm
Saw Band Length 2560mm 3460mm 4070mm 4350mm 5120mm 4730mm 4730mm
Band saw speed

Frequency conversion-30-390m/min

 Frequency conversion-30-460m/min Frequency conversion-36-580m/min Frequency conversion-36-580m/min Frequency conversion-40-500m/min Frequency conversion-36-580m/min 20.36.40.58.72.82.116.164 RPM
host motor 1 HP 1 HP 2 HP 2 HP 2 HP 2 HP 2 HP
Grinding wheel motor 1/10 HP 1/10 HP 1/8 HP 1/8HP 1/8 HP 1/10 HP 1/10 HP
Welding ability 1.2 KVA (13mm) 2.0 KVA (15mm) 4.2 KVA (19mm) 4.2 KVA (19mm) 4.2 KVA (19mm) 4.2 KVA (19mm) 2.0 KVA (15mm)
table angle 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right 10 degrees front and rear / 15 degrees left and right
working desk size 500 x 500 mm 600 x 500 mm 600 x 500 mm 680 x 750 mm 620 x 580 mm 500x500mmx2 500x500mmx2
net weight 200kgs 410kgs 510kgs 610kgs 880kgs 800kgs 800kgs
Mechanical Dimensions 890x655x1536mm 1100x877x1885mm 1260x943x1960mm 1340x943x2070mm 1500x1100x2300mm 1950x900x1800mm 1950x900x1800mm
