7x12 Vertical and Horizontal Band Saw C-178,C-178TH

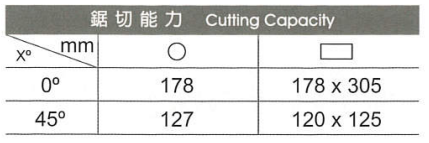

C-178, C-178TH 7"x12" Vertical and Horizontal Band Saw Cutting Capacity

1.round tube
A: 0 degree-178mm
B: 45 degrees-127mm

2.rectangular tube
A: 0 degrees-178x305mm
B: 45 degrees-120x125mm

C-178
C-178TH
  1. Inquiry
  2. Back
  3. Previous
  4. Next

Detailed description

C-178, C-178TH 7"x12" Vertical and Horizontal Band Saw Cutting Capacity

1.round tube
A: 0 degree-178mm
B: 45 degrees-127mm

2.rectangular tube
A: 0 degrees-178x305mm
B: 45 degrees-120x125mm

Specification data

model C-178 C-178TH
motor 3/4 HP 3/4 HP
Band saw speed 50HZ 22.34.49.64m/min 50HZ 24.41.61.82m/min
Saw Band Size 19.05x0.8x2362mm 19.05x0.8x2362mm
floor space 1235x430x955mm 1240x620x1135mm
machine weight 135kgs 155kgs
Package Size 1270x470x965mm 1320x749x740mm
